DC Power Distribution Products

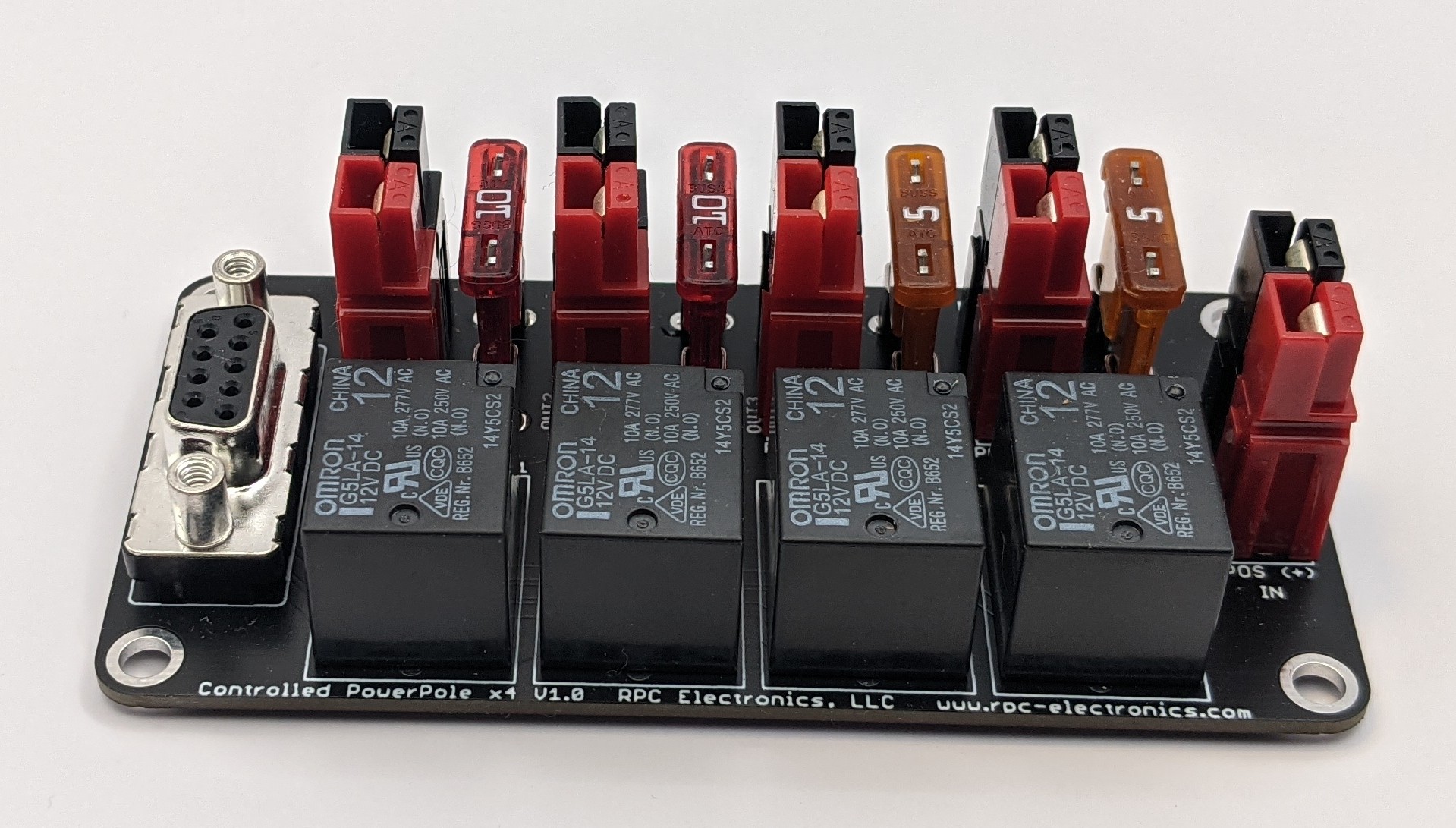

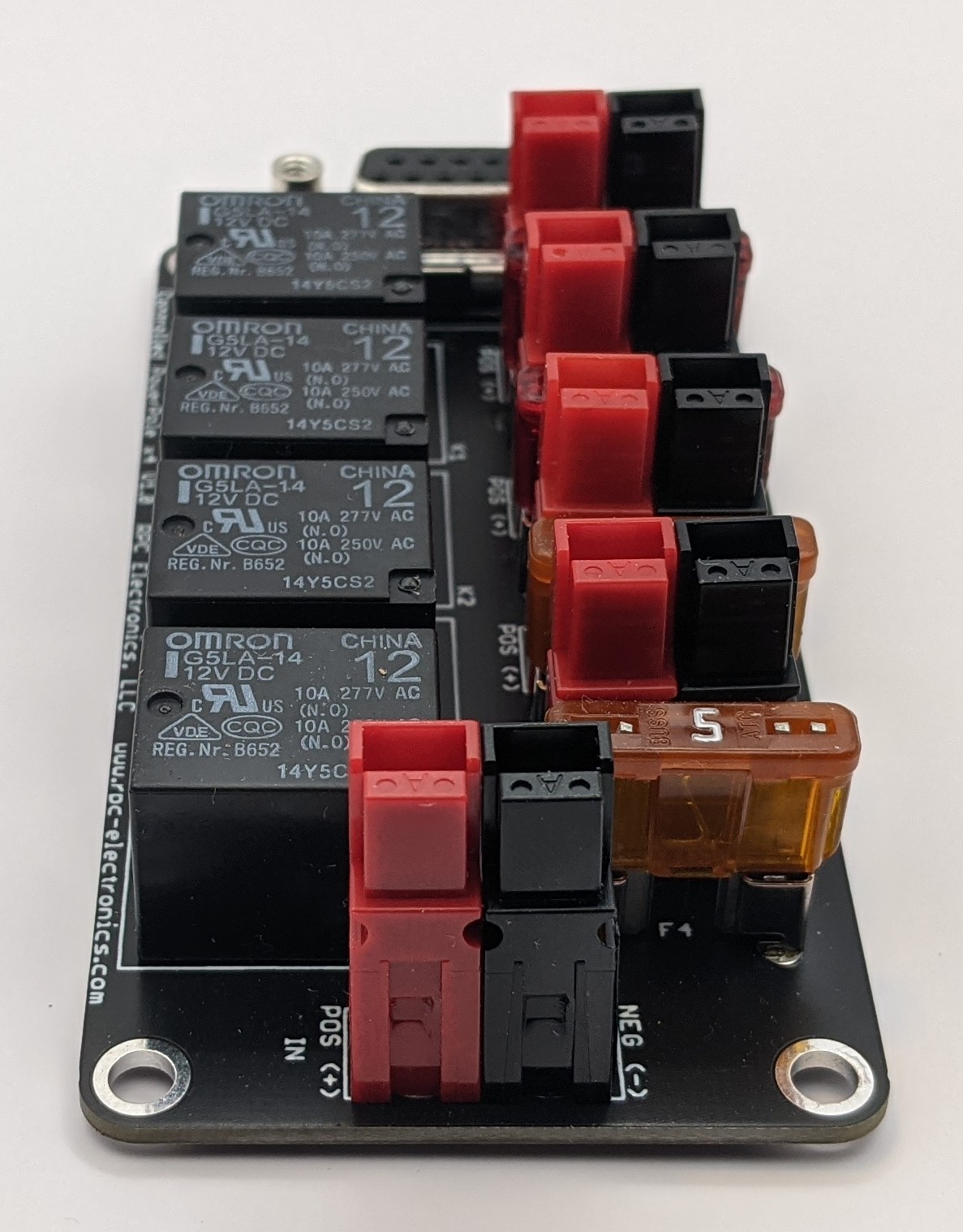

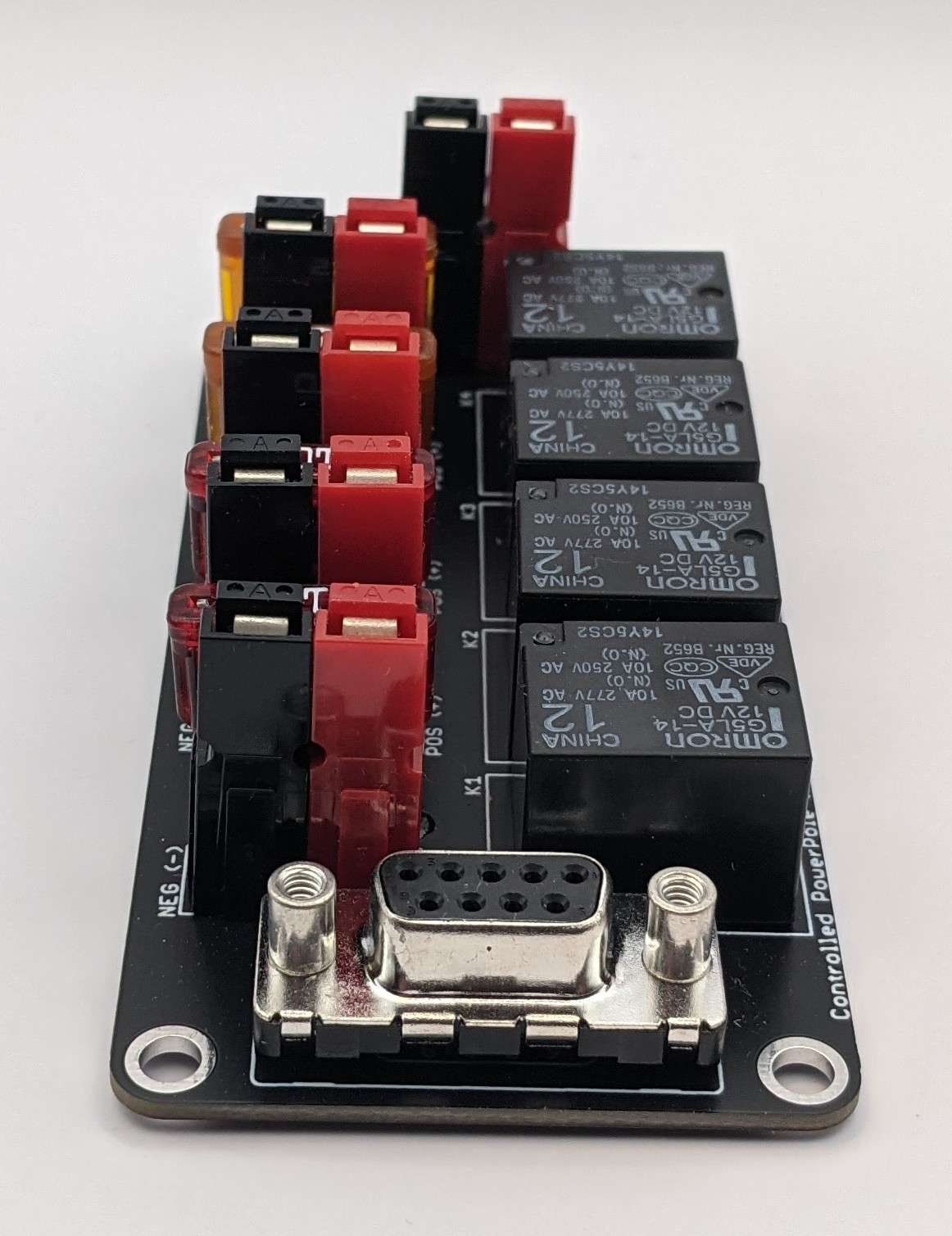

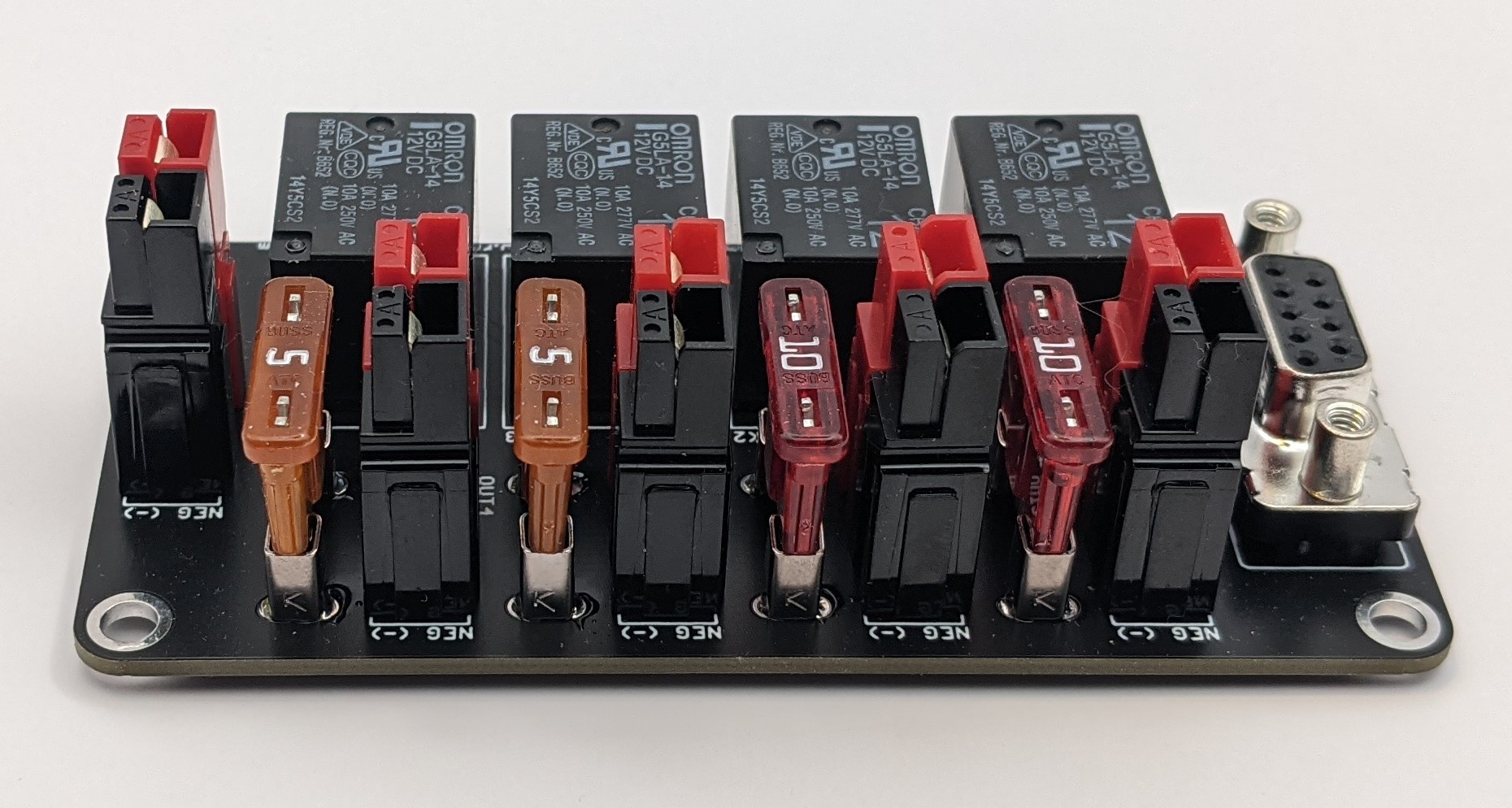

  • Five Port Controlled PowerPole Distribution Block

  • - Five ports
    - Ports 1-3 always powered
    - Ports 4 and 5 are controlled by internal 10 Amp on-board relays
    - Relays are controlled through simple grounding interface block
    - See manual for full installation details

    Installation Manual: Download

    $40.00 + Shipping --- Part #PPCDB5

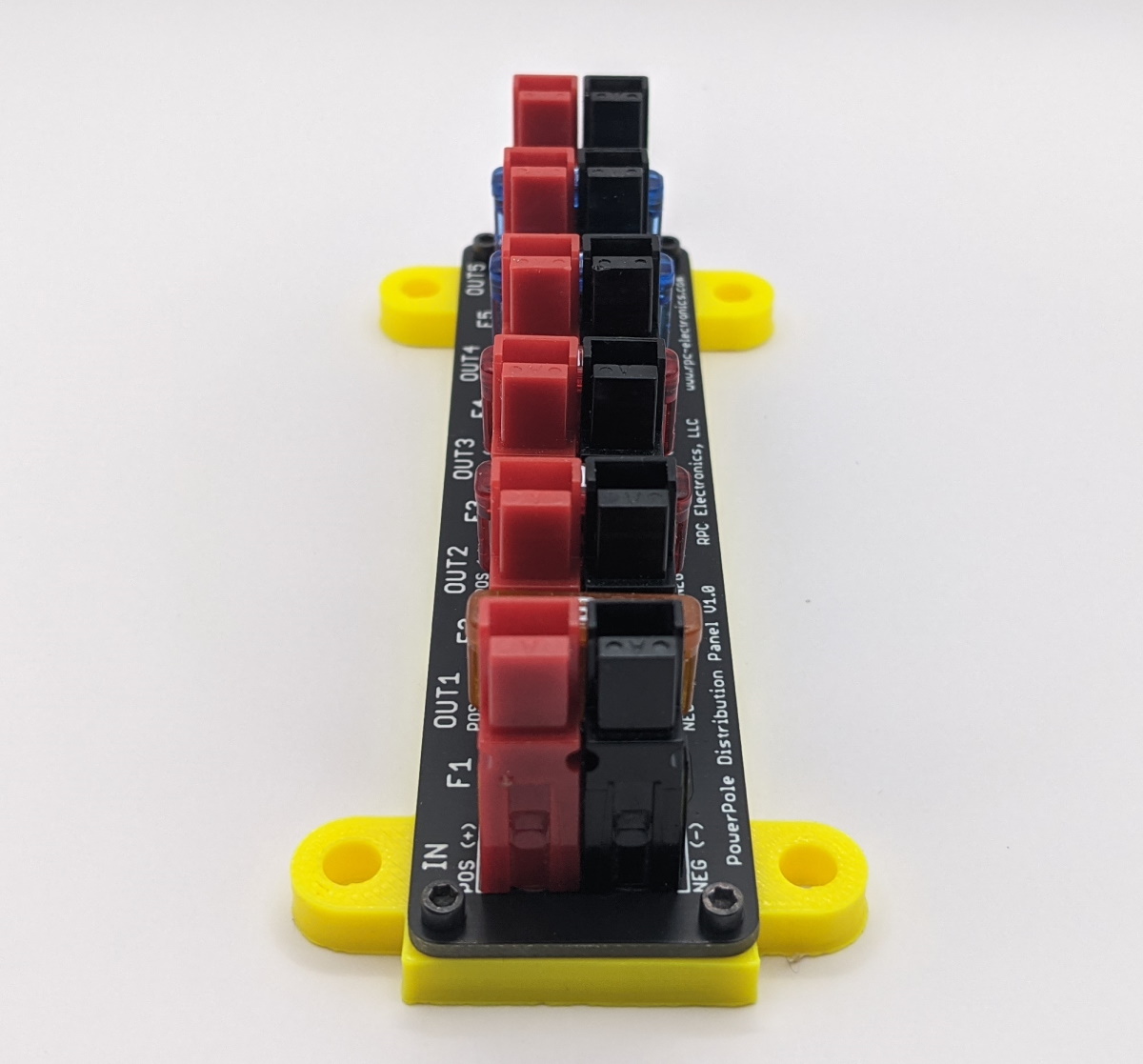

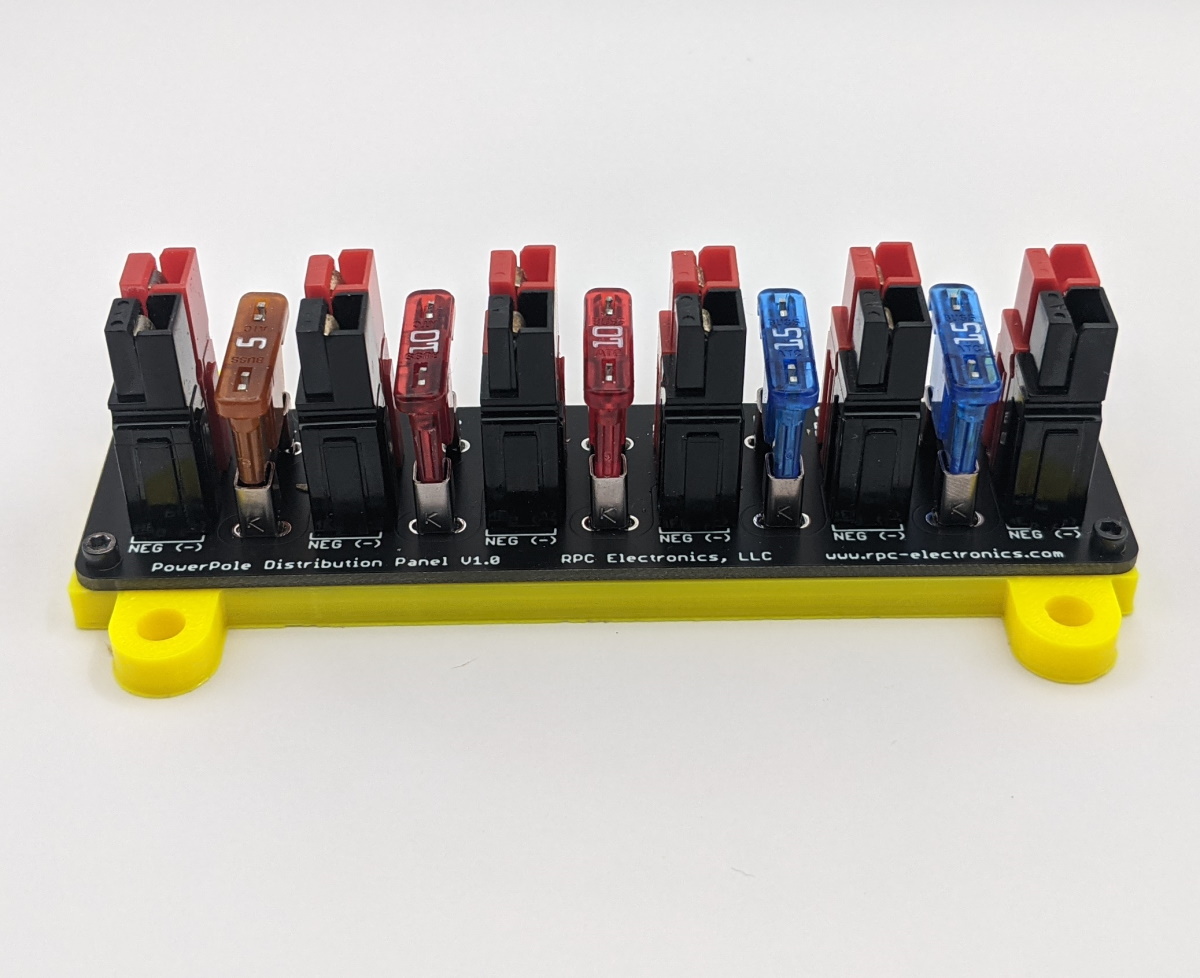

  • Five Port PowerPole Distribution Block

  • - Five ports in parallel
    - Input voltage on any port and get voltage on other others
    - Simple design. Easy to embed install in many projects
    - Four pre-drilled mounting holes. Can be drilled out larger is required.

    $20.00 + Shipping --- Part #PPDB5




  • ATX Power Supply Breakout Box/Adapter

  • - Designed to connect directly to a standard ATX power supply
    - Independant regulated outputs: +3.3V, +5V, +12V and -12V
    - Rear panel power switch control
    - Front panel LED ON indicator
    - Flanged mounting wings for permanent installation on work bench
    - Included accessory kit contains mounting hardware and matching color coded PowerPole connectors

    $35.00 + Shipping --- Part #ATXPS


  • Automatic Power Off 3

  • - Monitors input voltage, cuts off at voltage threshholds: 11.8, 12.1, 12.7, 13.05 Volts
    - Delayed time cut-off: 0, 5, 10 and 15 Minutes
    - Settings controlled through on-board DIP switches
    - 7-20VDC input Voltage
    - Current Limit: 30 Amp Hold, 20 Amp Switching
    - Flanged mounting wings for permanent installation
    - Flame retardant ABS plastic case

    $60.00 + Shipping --- Part #RAPO3

    With PowerPole Connectors

    $63.00 + Shipping --- Part #RAPO3-PP
