RTrak-LP - The Original All-In-One APRS Tracker


    Key Features
  • APRS Modem (OpenTracker 1+), GPS and Transmitter all built-in
  • Transmitter is frequency agile, up to 8 frequencies can be pre-programmed
  • Fast GPS lock time - Typically <30 Seconds!
  • Small and Lightweight - Size: 123x78x27mm Weight: 206g or 7.25oz
  • Aluminum Case Custom Milled and Engraved - Looks good and built to last!
  • Free Firmware Upgrades
  • Low-loss gold-plated SMA connectors

    The RTrak-LP is the first of it's kind! A true all-in-one APRS tracker with built in 350mW frequency-agile transmitter and Sirf enabled GPS. The transmitter is programmable for any frequency in the range of 144-148 MHz. The transmitter can operate on any of eight pre-programmed frequencies, selectable by an on-board rotary selector switch. Dual frequencies can be used by using dual timers or any of the OpenTracker switch functions (exp: alititude, speed and voltage input) The tracker is based on the popular open source OpenTracker 1+. Firmware upgrades are free and user-flashable.
    Weight and Size:
  • With Case Weight: 206g or 7.25 oz
  • With Case Size: 123x78x27 mm (LxWxH)
  • Without Case Weight: 62g or 2.25 oz
  • Without Case Size: 120x75x14 mm (LxWxH)
    Package Contents
  • RTrak-LP APRS Tracker
  • Micro Magnetic GPS Patch Antenna
  • Programming Cable
  • Lighter Plug Power Cord
  • Manual

Notice: This is a pre-order item. Please allow six to eight weeks for delivery

$250.00 + Shipping --- Part #RTRAK-LP

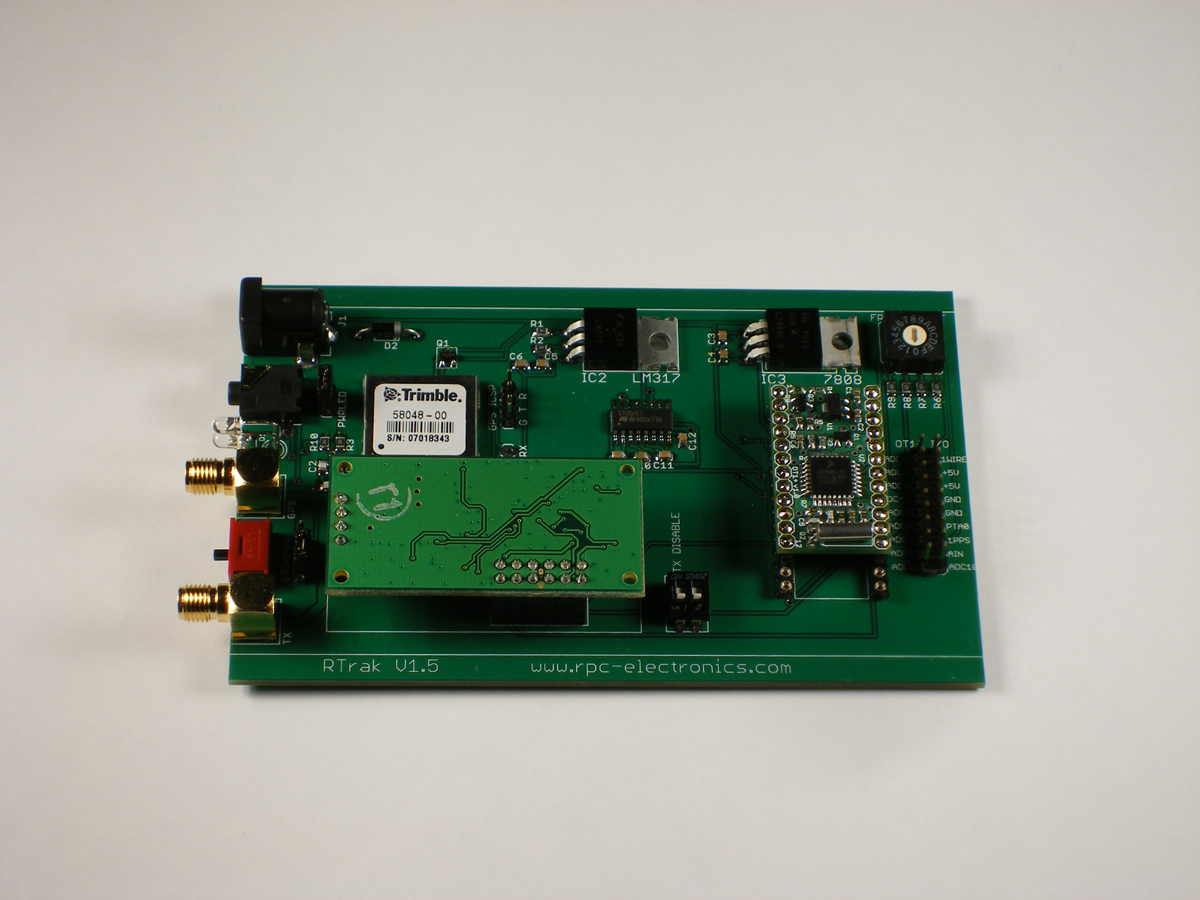

(Click to enlarge image)

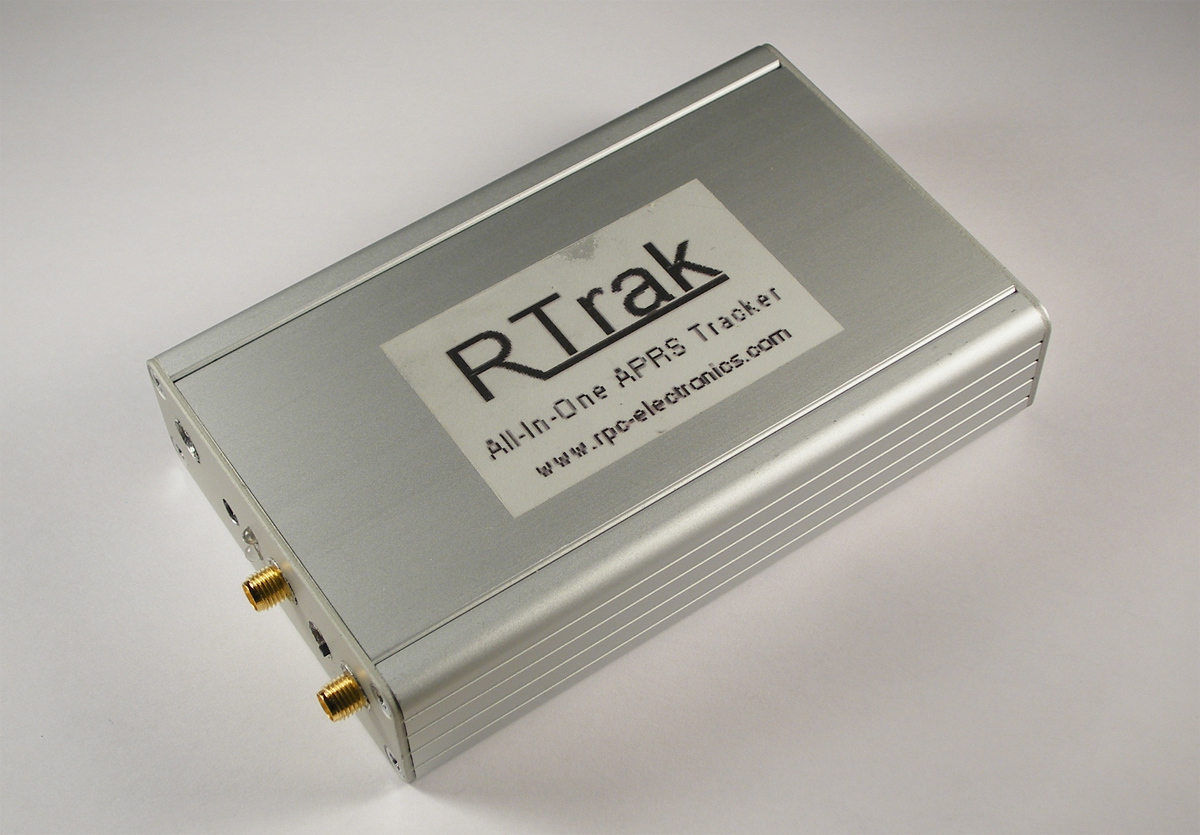

(Click to enlarge image)

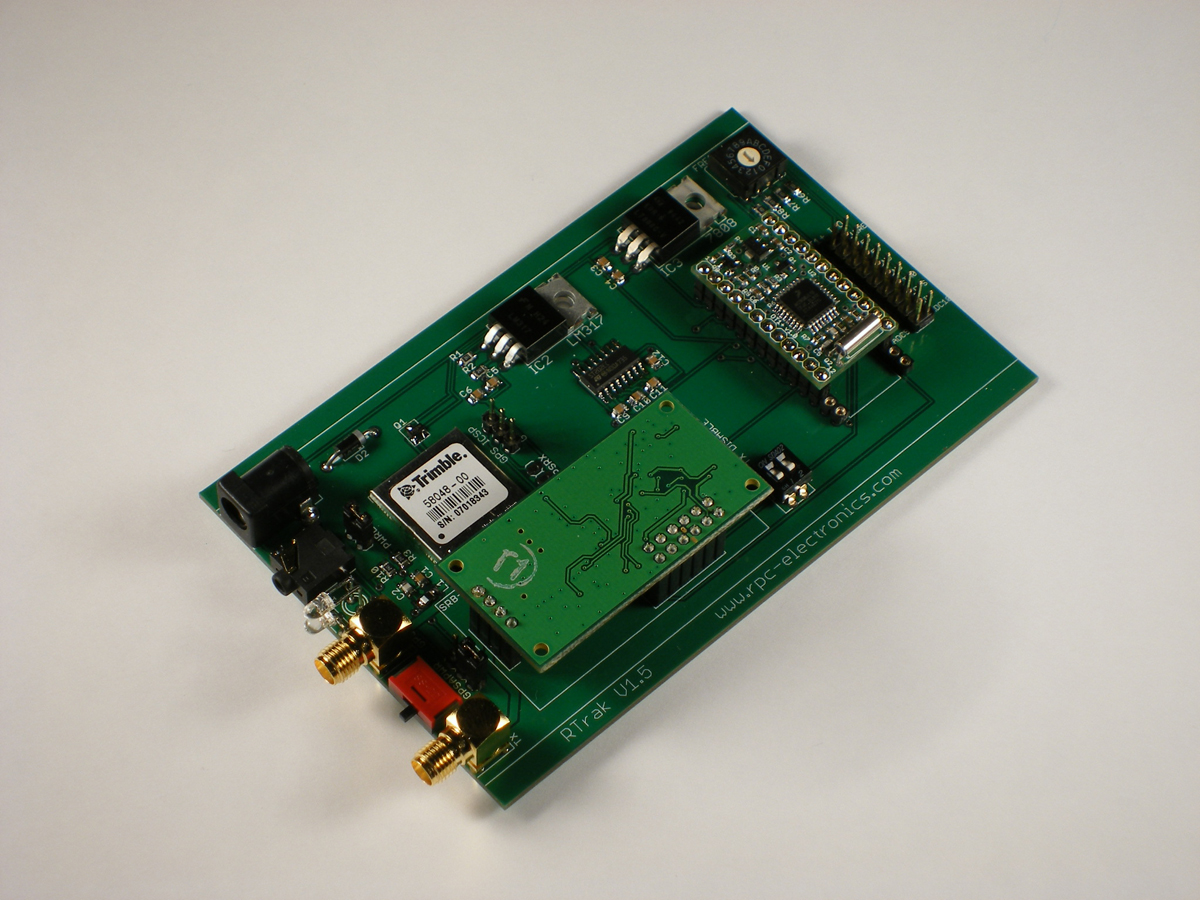

(Click to enlarge image)

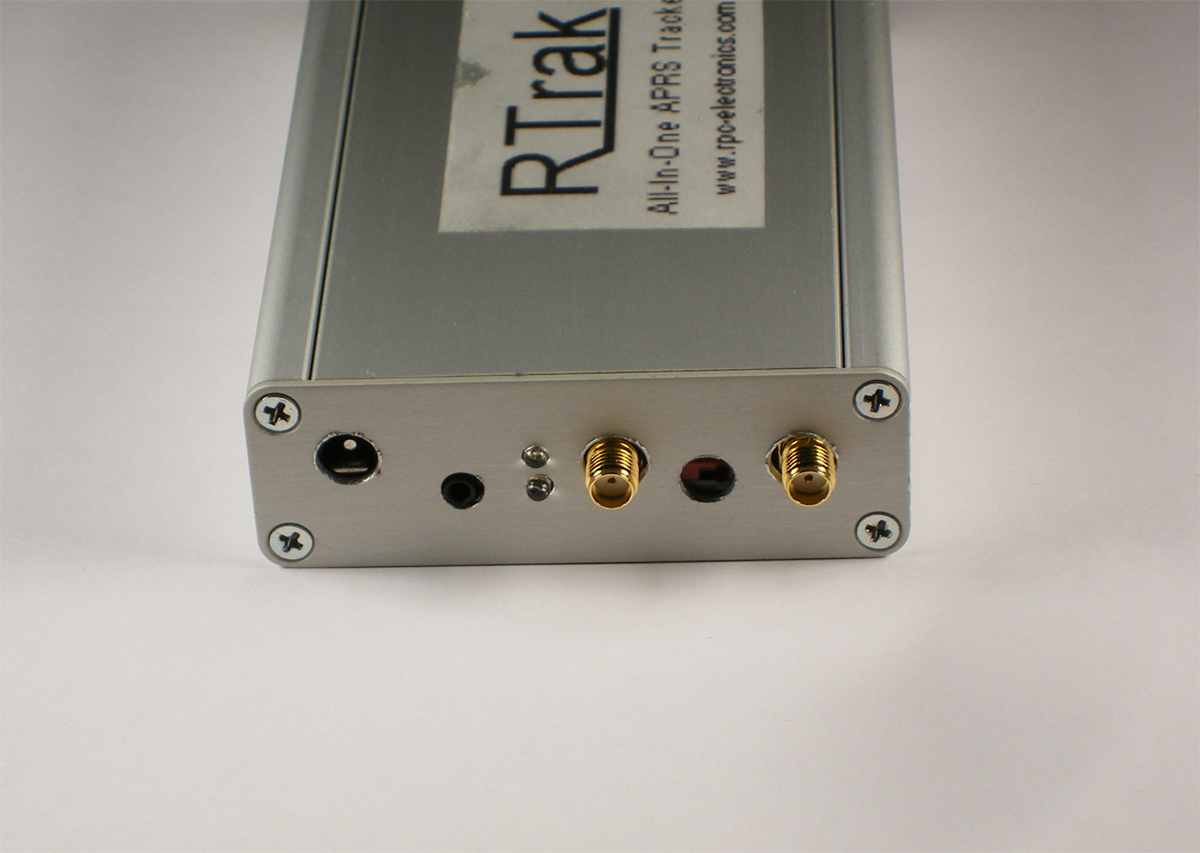

(Click to enlarge image)
